ESP-GUARDX User Manual

Industrial Motor, Well and Pump Monitoring & Control System

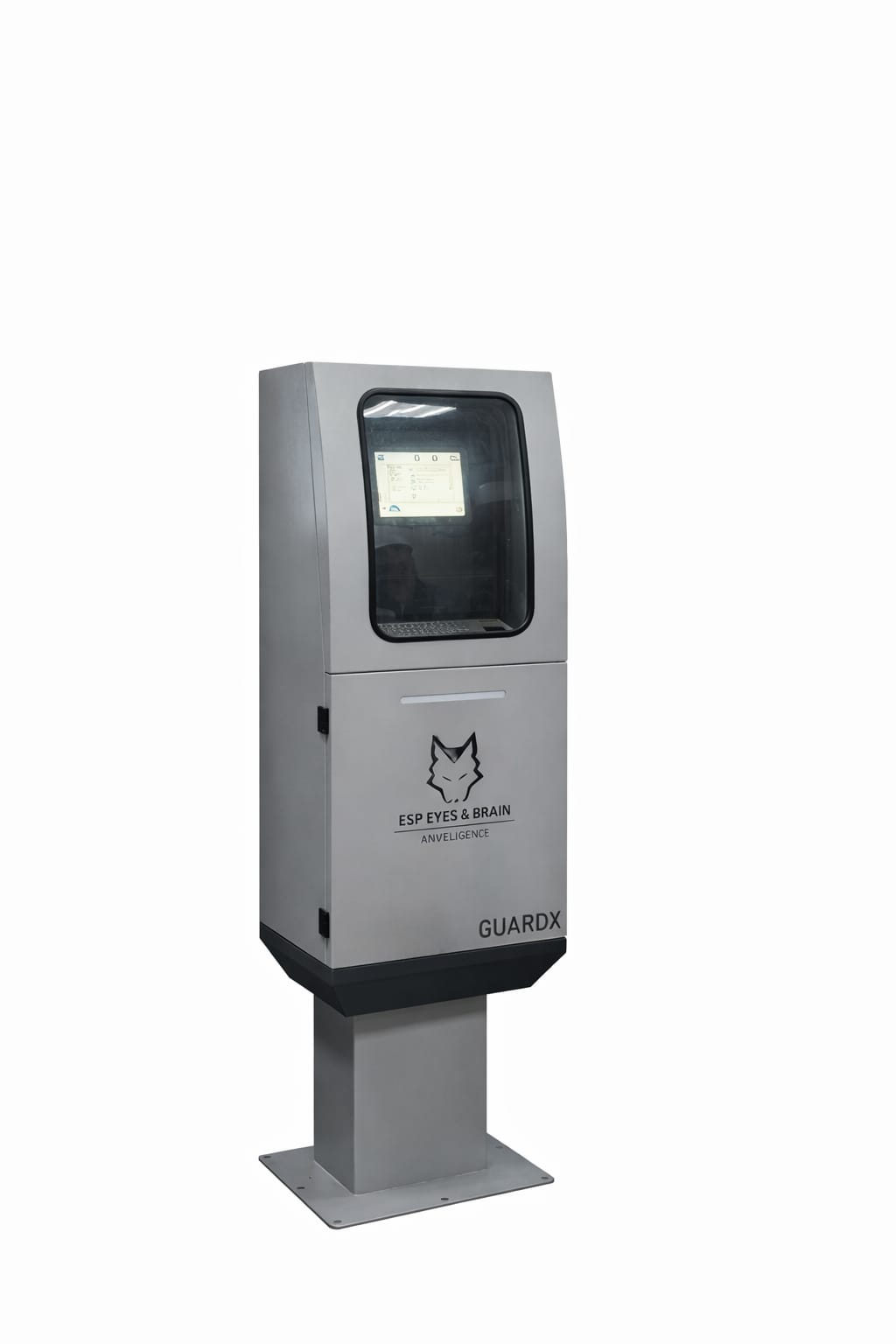

ESP-GUARDX Device

Welcome

ESP-GUARDX is an industrial-grade HMI (Human Machine Interface) device for real-time monitoring, control, and protection of industrial well pumps, electric motors, and related equipment. It is purpose-built for Electric Submersible Pump (ESP) systems used in oil operations.

Key Capabilities

  • Real-Time Monitoring -- Live voltage, current, frequency, power, temperature, and vibration data across 8 channels at up to 40 million samples per second.
  • Black Box Event Recording -- Automatic fault detection with pre-trigger buffering that captures data before the event occurred, enabling root cause analysis.
  • Pump Performance Analysis -- Affinity law-based pump curve simulation across variable frequencies (30--400 Hz) with support for 80+ pump models.
  • Motor Health Tracking -- Load analysis, efficiency curves, temperature monitoring, and vibration analysis.
  • Power Quality Assessment -- Harmonic analysis up to the 50th harmonic, phase unbalance detection, and IEC 61000-4-30 compliant measurements.
  • Well Production Monitoring -- Oil, water, gas, cumulative-fluid, and downhole-rate tracking with historical data.
  • ESP System Configuration -- Drag-and-drop energy system designer and comprehensive ESP component configurator.
  • Industrial Communication -- Modbus RTU over RS-485.

Who This Manual Is For

This manual is intended for:

  • Field Operators who monitor and control ESP systems on a daily basis
  • Maintenance Engineers who diagnose faults and plan preventive maintenance
  • System Administrators who configure the device and manage event thresholds

Use the sidebar to navigate between sections. The manual is organized to follow the application's screen layout:

  1. Getting Started -- Hardware overview, system requirements, and first power on
  2. ESP Configurator -- Component-level ESP system setup
  3. Settings -- System, performance logger, I/O, and event threshold configuration
  4. Dashboard -- The main control panel and live data overview
  5. Status & Power -- Detailed power measurements, power quality analysis, and PCC estimation
  6. Motor Monitoring -- Motor load, efficiency, and health
  7. Pump Performance -- Pump curves and frequency scaling
  8. Well Monitoring -- Well information and production data
  9. Waveforms & Harmonics -- Oscilloscope view and harmonic spectrum
  10. Events -- Event recording, viewing, and the Performance Data Viewer
  11. AI & Optimization -- Optimization screen, AI optimization curve logic, predictive health monitoring, and Guard X action logic
  12. Communication -- Protocols and device account / registration
  13. Reference -- Glossary, default thresholds, and production/well parameter tables
  14. Energy System Designer (coming soon) -- Power system design interface

ESP-GUARDX -- by Datsan Special Transformers / DCAC
